ZDBK-850 Automatic Card Mounting Machine


Semi automatic Card Mounting Machine can press papers of different thicknesses and sizes.

Send Inquiry Now

Detailed

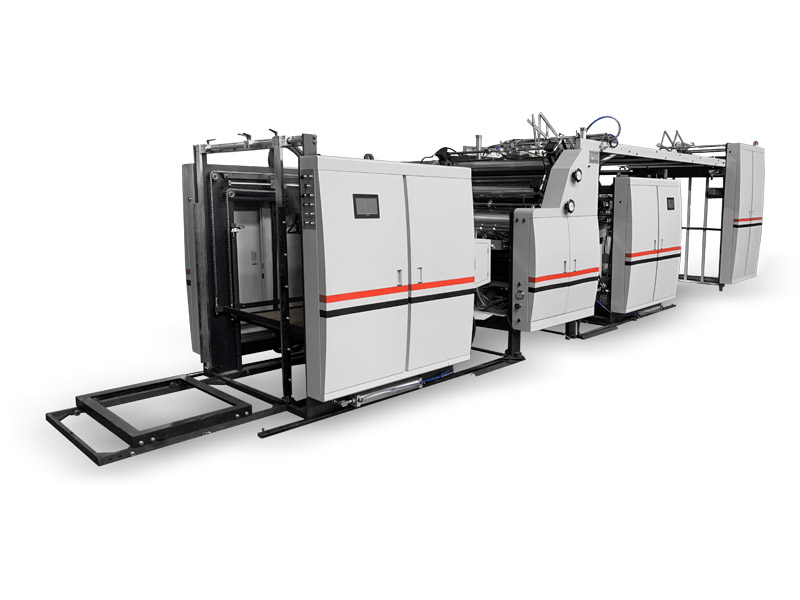

Automatic Card Mounting Machine

ZDBK-850 Automatic Card Mounting Machine with a speed of 4000 sheets / hour. The vacuum pump drives Feida and paper feeding. There is a double sheet control in front of the paper feeding. When the paper is fed with two or more sheets, the inclined sheet will stop automatically.
The laminating part is composed of a group of large rollers and two groups of small rollers. The diameter of the large roller is 320mm and the diameter of the small roller is 160mm. The large roller is equipped with teeth. The paper is bitten by the large roller, and the finished product is produced after pressing between the two small rollers.

Its main working performance is: less glue, fast drying and good paper stiffness.


Application of ZDBK-850 Automatic Card Mounting Machine

It is suitable for high-grade wine boxes, hangtag boxes, cake boxes, shoe boxes, cosmetic boxes, drug packaging boxes, food packaging boxes, mouse sticking plates and other products. It can press papers of different thicknesses and sizes.
Features Of Card Mounting Machine
1. Feida is directly driven by servo motor - (traditional transmission shaft configuration)
2. Fast speed. 4000sheets/hour (the highest speed of the same type at home and abroad)
3. Steady bite and accurate mounting. ±0.3
4. Greater mounting strength (the roller is thickened on the original basis to avoid paper bending and more force during paper output. The wall plate structure and thickness are greatly improved. It is a solid structure, which has more use guarantee and safety compared with the structure of other products of the same type)
5. With double, oblique, multi control. (The use of equipment is safer and more stable, while reducing paper loss)
6. The machine is equipped with ready paper loading, which saves time and improves output
7. Adopt the most high-end electrical equipment. Performance and safety are better guaranteed, walking on the high-quality route.
8. Processing technology: after forging, put it into the baking house for simmering processing. Prevent casting deformation and make the material harder.

9. The whole machine is controlled by PLC.

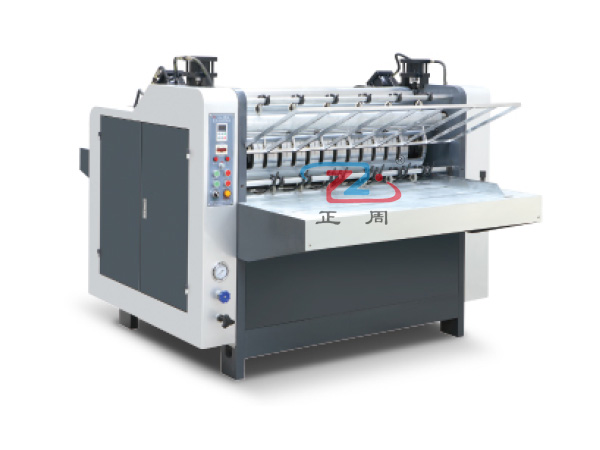

Semi automatic Card Mounting Machine



Model
ZDBK-850
ZDBK-1150
Min. Paper Size
240×280mm
280×280mm
Max. Paper Size
800×600mm
1080×800mm
Thickness of Paper
150-900gsm
150-900gsm
Laminating Speed
4000 sheets/hour
4000 sheets/hour
Stack Height of Paper Feeding Table
920mm
920mm
Stack Height of Paper Receiving Table
1450mm
1450mm
Temperature Range
20-120°C
20-120°C
Power
13KW
16KW
Weight
5500kg
6500kg
Max. Working Pressure
50T
50T
Dimension(L*W*H)
7500×1600×2200mm
9500×1900×2200mm



Q1. About us

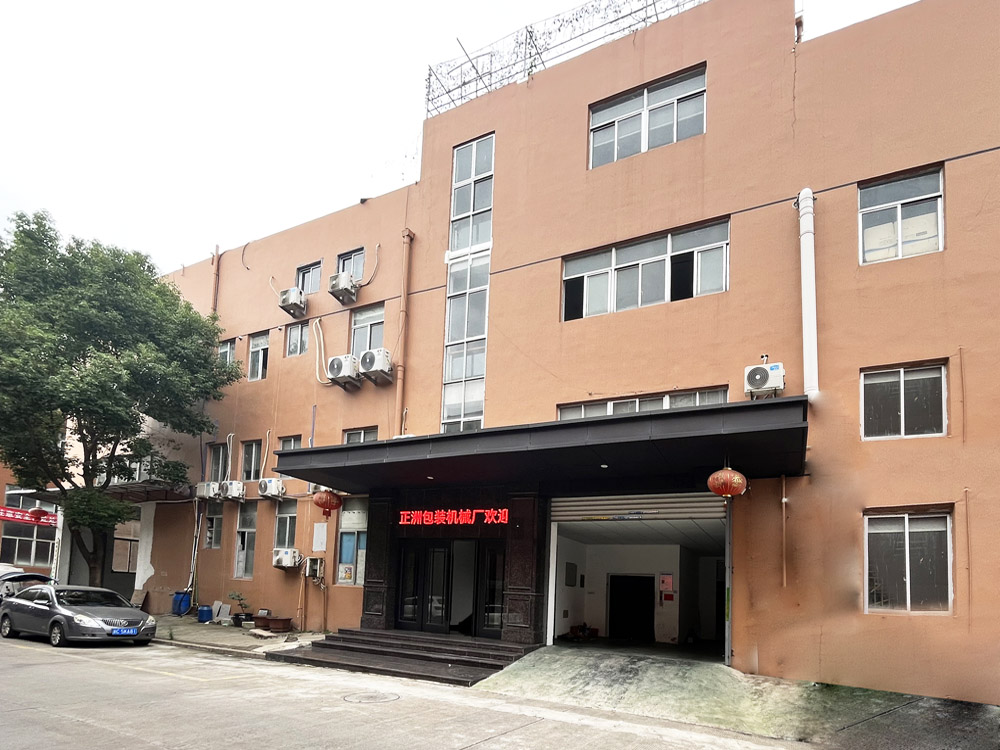

A1: We are based in Zhejiang, China, start from 2005,specialize in paper cardboard embossing machine and paper board mounting machine. Sell machines to domestic market as well as overseas countries from Southeast Asia, Europe, America, etc.
Q2. How can we guarantee quality?
A2: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q3. What can you buy from us?
A3: Paper cardboard embossing machine, paper board mounting machine. Both Semi-automatic and automatic as required.
Q4. Why should you buy from us not from other suppliers?
1) More than 20 years professional experience in this Some machine models has our own patent.
2) Fast delivery.Most of the models has stock or semi-finished, and can delivery in few days.
3) The card mounting machine has reliable quality and good after-sales service
